Вопрос по Caller ID

Andy · Сообщение **Andy** » 21 апр 2021, 14:33

Добрый день,

Подскажите, пожалуйста в следующей ситуации.
Есть такая схема:
АТС LG <--SIP--> FreePBX 1 <--SIP--> FreePBX 2

АТС LG:
172.26.218.10
FreePBX 1:
172.26.223.29
FreePBX 2:
172.16.173.148

С АТС LG звоним с номера 962191, на номер 10299.

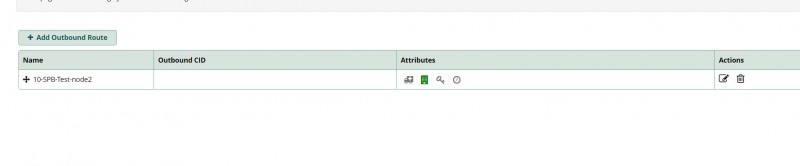

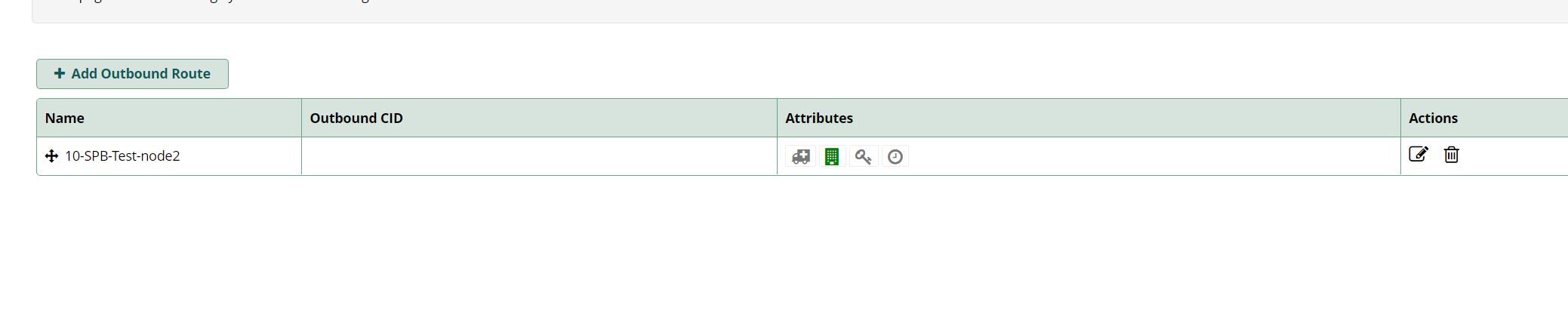

На FreePBX 1 прописан входящий маршрут, при получении 10XXXX
Направить в сип транк смотрящий на FreePBX 2, "отрезав" 10ку.
на FreePBX 2, приходит вызов на абонента 2999 всё нормально разговор состоялся.

Вопрос с отображением имени, хотелось бы видеть ФИО звонящего.

С LG на FreePBX 1 ФИО приходит,
Но если я правильно понял при транзите с FreePBX 1 на FreePBX 2,
CALLERID меняется на номер.

Вот эта строчка
5256 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:9] ExecIf("SIP/172.26.218.10-0000001c", "1 ?Set(CALLERID(name)=962191)") in new stack

Соответственно на FreePBX 2 мы видим и номер 962191 и ФИО как: "962191"

Вот ниже весь лог с FreePBX 1:

PRIME_BBCODE_SPOILER_SHOW PRIME_BBCODE_SPOILER:

5152 <------------->
5153 [2021-04-20 10:55:11] VERBOSE[18872] chan_sip.c: --- (11 headers 0 lines) ---
5154 [2021-04-20 10:55:11] VERBOSE[18872] chan_sip.c: Really destroying SIP dialog '1697ecc52815df53215643067cbe5359@172.26.223.29:5060' Method: OPTIONS
5155 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c:
5156 <--- SIP read from UDP:172.26.218.10:5060 --->
5157 INVITE sip:102999@172.26.223.29 SIP/2.0
5158 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5159 To: <sip:102999@172.26.223.29>
5160 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5161 CSeq: 1 INVITE
5162 Via: SIP/2.0/UDP 172.26.218.10:5060;rport;branch=z9hG4bK-66182-18ece55e-44127464-488f8630
5163 Max-Forwards: 70
5164 Allow: INVITE,ACK,OPTIONS,BYE,CANCEL,REGISTER,REFER,SUBSCRIBE,NOTIFY,MESSAGE,INFO,PRACK,UPDATE
5165 Supported: replaces,UPDATE,INFO
5166 P-Asserted-Identity: "Shkutov Pavel"<sip:962191@172.26.223.29>
5167 Remote-Party-ID: <sip:962191@172.26.218.10>; party=calling; privacy=off; screen=yes
5168 Privacy: none
5169 User-Agent: Ericsson-LG Enterprise iPECS-eMG eMG800 2.1.11
5170 Contact: "Shkutov Pavel"<sip:962191@172.26.218.10:5060;transport=UDP>
5171 Content-Type: application/sdp
5172 Content-Length: 231
5173
5174 v=0
5175 o=iPECS-eMG 22 22 IN IP4 172.26.218.10
5176 s=iPECS-eMG SIP
5177 c=IN IP4 172.26.218.10
5178 t=0 0
5179 m=audio 20538 RTP/AVP 18 101
5180 a=rtpmap:18 G729/8000
5181 a=fmtp:18 annexb=no
5182 a=rtpmap:101 telephone-event/8000
5183 a=fmtp:101 0-15
5184 a=sendrecv
5185 <------------->
5186 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: --- (16 headers 11 lines) ---
5187 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: Sending to 172.26.218.10:5060 (no NAT)
5188 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Sending to 172.26.218.10:5060 (no NAT)
5189 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Using INVITE request as basis request - 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5190 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found peer '172.26.218.10' for '962191' from 172.26.218.10:5060
5191 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] netsock2.c: Using SIP RTP TOS bits 184
5192 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] netsock2.c: Using SIP RTP CoS mark 5
5193 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Got SDP version 22 and unique parts [iPECS-eMG 22 IN IP4 172.26.218.10]
5194 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found RTP audio format 18
5195 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found RTP audio format 101
5196 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found audio description format G729 for ID 18
5197 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found audio description format telephone-event for ID 101
5198 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Capabilities: us - (g729), peer - audio=(g729)/video=(nothing)/text=(nothing), combined - (g729)
5199 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Non-codec capabilities (dtmf): us - 0x1 (telephone-event|), peer - 0x1 (telephone-event|), combined - 0x1 (telephone-event|)
5200 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Peer audio RTP is at port 172.26.218.10:20538
5201 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Looking for 102999 in from-trunk (domain 172.26.223.29)
5202 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] sip/route.c: sip_route_dump: route/path hop: <sip:962191@172.26.218.10:5060;transport=UDP>
5203 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c:
5204 <--- Transmitting (no NAT) to 172.26.218.10:5060 --->
5205 SIP/2.0 100 Trying
5206 Via: SIP/2.0/UDP 172.26.218.10:5060;branch=z9hG4bK-66182-18ece55e-44127464-488f8630;received=172.26.218.10;rport=5060
5207 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5208 To: <sip:102999@172.26.223.29>
5209 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5210 CSeq: 1 INVITE
5211 Server: FPBX-15.0.16.81(16.13.0)
5212 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5213 Supported: replaces, timer
5214 Contact: <sip:102999@172.26.223.29:5060>
5215 Content-Length: 0
5216
5217
5218 <------------>
5219 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:1] Set("SIP/172.26.218.10-0000001c", "__DIRECTION=INBOUND") in new stack
5220 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:2] Gosub("SIP/172.26.218.10-0000001c", "sub-record-check,s,1(in,102999,dontcare)") in new stack
5221 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:1] GotoIf("SIP/172.26.218.10-0000001c", "0?initialized") in new stack
5222 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:2] Set("SIP/172.26.218.10-0000001c", "__REC_STATUS=INITIALIZED") in new stack
5223 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:3] Set("SIP/172.26.218.10-0000001c", "NOW=1618916116") in new stack
5224 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:4] Set("SIP/172.26.218.10-0000001c", "__DAY=20") in new stack
5225 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:5] Set("SIP/172.26.218.10-0000001c", "__MONTH=04") in new stack
5226 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:6] Set("SIP/172.26.218.10-0000001c", "__YEAR=2021") in new stack
5227 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:7] Set("SIP/172.26.218.10-0000001c", "__TIMESTR=20210420-105516") in new stack
5228 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:8] Set("SIP/172.26.218.10-0000001c", "__FROMEXTEN=unknown") in new stack
5229 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:9] Set("SIP/172.26.218.10-0000001c", "__MON_FMT=wav") in new stack
5230 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:10] NoOp("SIP/172.26.218.10-0000001c", "Recordings initialized") in new stack
5231 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:11] ExecIf("SIP/172.26.218.10-0000001c", "0?Set(ARG3=dontcare)") in new stack
5232 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:12] Set("SIP/172.26.218.10-0000001c", "REC_POLICY_MODE_SAVE=") in new stack
5233 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:13] ExecIf("SIP/172.26.218.10-0000001c", "0?Set(REC_STATUS=NO)") in new stack
5234 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:14] GotoIf("SIP/172.26.218.10-0000001c", "2?checkaction") in new stack
5235 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (sub-record-check,s,17)
5236 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:17] GotoIf("SIP/172.26.218.10-0000001c", "1?sub-record-check,in,1") in new stack
5237 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (sub-record-check,in,1)
5238 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:1] NoOp("SIP/172.26.218.10-0000001c", "Inbound Recording Check to 102999") in new stack
5239 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:2] Set("SIP/172.26.218.10-0000001c", "FROMEXTEN=unknown") in new stack
5240 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:3] ExecIf("SIP/172.26.218.10-0000001c", "6?Set(FROMEXTEN=962191)") in new stack
5241 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:4] Gosub("SIP/172.26.218.10-0000001c", "recordcheck,1(dontcare,in,102999)") in new stack
5242 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [recordcheck@sub-record-check:1] NoOp("SIP/172.26.218.10-0000001c", "Starting recording check against dontcare") in new stack
5243 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [recordcheck@sub-record-check:2] Goto("SIP/172.26.218.10-0000001c", "dontcare") in new stack
5244 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (sub-record-check,recordcheck,3)
5245 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [recordcheck@sub-record-check:3] Return("SIP/172.26.218.10-0000001c", "") in new stack
5246 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:5] Return("SIP/172.26.218.10-0000001c", "") in new stack
5247 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:3] Set("SIP/172.26.218.10-0000001c", "CHANNEL(tonezone)=us") in new stack
5248 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:4] Set("SIP/172.26.218.10-0000001c", "__FROM_DID=102999") in new stack
5249 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:5] Set("SIP/172.26.218.10-0000001c", "returnhere=1") in new stack
5250 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:6] Gosub("SIP/172.26.218.10-0000001c", "app-blacklist-check,s,1()") in new stack
5251 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@app-blacklist-check:1] GotoIf("SIP/172.26.218.10-0000001c", "0?blacklisted") in new stack
5252 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@app-blacklist-check:2] Set("SIP/172.26.218.10-0000001c", "CALLED_BLACKLIST=1") in new stack
5253 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@app-blacklist-check:3] Return("SIP/172.26.218.10-0000001c", "") in new stack
5254 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:7] Set("SIP/172.26.218.10-0000001c", "CDR(did)=102999") in new stack
5255 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:8] GotoIf("SIP/172.26.218.10-0000001c", "0?") in new stack
5256 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:9] ExecIf("SIP/172.26.218.10-0000001c", "1 ?Set(CALLERID(name)=962191)") in new stack
5257 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:10] Set("SIP/172.26.218.10-0000001c", "__MOHCLASS=") in new stack
5258 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:11] Set("SIP/172.26.218.10-0000001c", "__REVERSAL_REJECT=FALSE") in new stack
5259 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:12] GotoIf("SIP/172.26.218.10-0000001c", "1?post-reverse-charge") in new stack
5260 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (from-trunk,102999,14)
5261 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:14] NoOp("SIP/172.26.218.10-0000001c", "") in new stack
5262 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:15] Set("SIP/172.26.218.10-0000001c", "__CALLINGNAMEPRES_SV=allowed_not_screened") in new stack
5263 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:16] Set("SIP/172.26.218.10-0000001c", "__CALLINGNUMPRES_SV=allowed_not_screened") in new stack
5264 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:17] Set("SIP/172.26.218.10-0000001c", "CALLERID(name-pres)=allowed_not_screened") in new stack
5265 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:18] Set("SIP/172.26.218.10-0000001c", "CALLERID(num-pres)=allowed_not_screened") in new stack
5266 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:19] NoOp("SIP/172.26.218.10-0000001c", "CallerID Entry Point") in new stack
5267 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:20] Set("SIP/172.26.218.10-0000001c", "__CRM_DIRECTION=INBOUND") in new stack
5268 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:21] Set("SIP/172.26.218.10-0000001c", "__CRM_SOURCE=962191") in new stack
5269 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:22] Set("SIP/172.26.218.10-0000001c", "__CRM_LINKEDID=1618916116.28") in new stack
5270 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:23] AGI("SIP/172.26.218.10-0000001c", "agi://127.0.0.1/sangomacrm.agi,true") in new stack
5271 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] res_agi.c: <SIP/172.26.218.10-0000001c>AGI Script agi://127.0.0.1/sangomacrm.agi completed, returning 0
5272 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:24] ExecIf("SIP/172.26.218.10-0000001c", "1?Set(CHANNEL(hangup_handler_push)=crm-hangup,s,1)") in new stack
5273 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:25] Goto("SIP/172.26.218.10-0000001c", "ext-trunk,1,1") in new stack
5274 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (ext-trunk,1,1)
5275 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [1@ext-trunk:1] Set("SIP/172.26.218.10-0000001c", "TDIAL_STRING=SIP/10-SPB_test_node_2 trunkOUT") in new stack
5276 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [1@ext-trunk:2] Set("SIP/172.26.218.10-0000001c", "DIAL_TRUNK=1") in new stack
5277 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [1@ext-trunk:3] Goto("SIP/172.26.218.10-0000001c", "ext-trunk,tdial,1") in new stack
5278 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (ext-trunk,tdial,1)
5279 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:1] Set("SIP/172.26.218.10-0000001c", "OUTBOUND_GROUP=OUT_1") in new stack
5280 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:2] GotoIf("SIP/172.26.218.10-0000001c", "1?nomax") in new stack
5281 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (ext-trunk,tdial,4)
5282 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:4] ExecIf("SIP/172.26.218.10-0000001c", "1?Set(CALLERPRES(name-pres)=allowed_not_screened)") in new stack
5283 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:5] ExecIf("SIP/172.26.218.10-0000001c", "1?Set(CALLERPRES(num-pres)=allowed_not_screened)") in new stack
5284 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:6] Set("SIP/172.26.218.10-0000001c", "DIAL_NUMBER=102999") in new stack
5285 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:7] GosubIf("SIP/172.26.218.10-0000001c", "1?sub-flp-1,s,1()") in new stack
5286 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-flp-1:1] ExecIf("SIP/172.26.218.10-0000001c", "1?Set(TARGET_FLP_1=2999)") in new stack
5287 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-flp-1:2] GotoIf("SIP/172.26.218.10-0000001c", "1?match") in new stack
5288 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (sub-flp-1,s,4)
5289 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-flp-1:4] Set("SIP/172.26.218.10-0000001c", "DIAL_NUMBER=2999") in new stack
5290 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-flp-1:5] Return("SIP/172.26.218.10-0000001c", "") in new stack
5291 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:8] Set("SIP/172.26.218.10-0000001c", "OUTNUM=2999") in new stack
5292 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:9] Set("SIP/172.26.218.10-0000001c", "DIAL_TRUNK_OPTIONS=T") in new stack
5293 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:10] Dial("SIP/172.26.218.10-0000001c", "SIP/10-SPB_test_node_2 trunkOUT/2999,300,T") in new stack
5294 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] netsock2.c: Using SIP RTP TOS bits 184
5295 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] netsock2.c: Using SIP RTP CoS mark 5
5296 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c: Audio is at 17736
5297 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c: Adding codec g729 to SDP
5298 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c: Adding non-codec 0x1 (telephone-event) to SDP
5299 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c: Reliably Transmitting (no NAT) to 172.16.173.148:5060:
5300 INVITE sip:2999@172.16.173.148 SIP/2.0
5301 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec
5302 Max-Forwards: 70
5303 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5304 To: <sip:2999@172.16.173.148>
5305 Contact: <sip:962191@172.26.223.29:5060>
5306 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5307 CSeq: 102 INVITE
5308 User-Agent: FPBX-15.0.16.81(16.13.0)
5309 Date: Tue, 20 Apr 2021 10:55:16 GMT
5310 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5311 Supported: replaces, timer
5312 Remote-Party-ID: "962191" <sip:962191@172.26.223.29>;party=calling;privacy=off;screen=no
5313 Content-Type: application/sdp
5314 Content-Length: 277
5315
5316 v=0
5317 o=root 1979690048 1979690048 IN IP4 172.26.223.29
5318 s=Asterisk PBX 16.13.0
5319 c=IN IP4 172.26.223.29
5320 t=0 0
5321 m=audio 17736 RTP/AVP 18 101
5322 a=rtpmap:18 G729/8000
5323 a=fmtp:18 annexb=no
5324 a=rtpmap:101 telephone-event/8000
5325 a=fmtp:101 0-16
5326 a=ptime:20
5327 a=maxptime:230
5328 a=sendrecv
5329
5330 ---
5331 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] app_dial.c: Called SIP/10-SPB_test_node_2 trunkOUT/2999
5332 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c:
5333 <--- SIP read from UDP:172.16.173.148:5060 --->
5334 SIP/2.0 100 Trying
5335 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec;received=172.26.223.29
5336 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5337 To: <sip:2999@172.16.173.148>
5338 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5339 CSeq: 102 INVITE
5340 Server: FPBX-14.0.16(16.13.0)
5341 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5342 Supported: replaces,timer
5343 Session-Expires: 1800;refresher=uas
5344 Contact: <sip:2999@172.16.173.148:5060>
5345 Content-Length: 0
5346
5347 <------------->
5348 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: --- (12 headers 0 lines) ---
5349 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c:
5350 <--- SIP read from UDP:172.16.173.148:5060 --->
5351 SIP/2.0 180 Ringing
5352 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec;received=172.26.223.29
5353 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5354 To: <sip:2999@172.16.173.148>;tag=as34bce41e
5355 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5356 CSeq: 102 INVITE
5357 Server: FPBX-14.0.16(16.13.0)
5358 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5359 Supported: replaces,timer
5360 Session-Expires: 1800;refresher=uas
5361 Contact: <sip:2999@172.16.173.148:5060>
5362 Content-Length: 0
5363
5364 <------------->
5365 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: --- (12 headers 0 lines) ---
5366 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] sip/route.c: sip_route_dump: route/path hop: <sip:2999@172.16.173.148:5060>
5367 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] app_dial.c: SIP/10-SPB_test_node_2 trunkOUT-0000001d is ringing
5368 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c:
5369 <--- Transmitting (no NAT) to 172.26.218.10:5060 --->
5370 SIP/2.0 180 Ringing
5371 Via: SIP/2.0/UDP 172.26.218.10:5060;branch=z9hG4bK-66182-18ece55e-44127464-488f8630;received=172.26.218.10;rport=5060
5372 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5373 To: <sip:102999@172.26.223.29>;tag=as4be79c79
5374 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5375 CSeq: 1 INVITE
5376 Server: FPBX-15.0.16.81(16.13.0)
5377 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5378 Supported: replaces, timer
5379 Contact: <sip:102999@172.26.223.29:5060>
5380 Content-Length: 0
5381
5382
5383 <------------>
5384 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c:
5385 <--- SIP read from UDP:172.16.173.148:5060 --->
5386 SIP/2.0 180 Ringing
5387 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec;received=172.26.223.29
5388 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5389 To: <sip:2999@172.16.173.148>;tag=as34bce41e
5390 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5391 CSeq: 102 INVITE
5392 Server: FPBX-14.0.16(16.13.0)
5393 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5394 Supported: replaces,timer
5395 Session-Expires: 1800;refresher=uas
5396 Contact: <sip:2999@172.16.173.148:5060>
5397 Remote-Party-ID: "Тест" <sip:2999@172.26.223.29>;party=called;privacy=off;screen=no
5398 Content-Length: 0
5399
5400 <------------->
5401 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: --- (13 headers 0 lines) ---
5402 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] sip/route.c: sip_route_dump: route/path hop: <sip:2999@172.16.173.148:5060>
5403 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] app_dial.c: SIP/10-SPB_test_node_2 trunkOUT-0000001d is ringing
5404 [2021-04-20 10:55:17] VERBOSE[18872] chan_sip.c: Reliably Transmitting (no NAT) to 172.16.173.148:5060:
5405 OPTIONS sip:172.16.173.148 SIP/2.0
5406 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK09e2afa9
5407 Max-Forwards: 70
5408 From: "Unknown" <sip:Unknown@172.26.223.29>;tag=as197395bd
5409 To: <sip:172.16.173.148>
5410 Contact: <sip:Unknown@172.26.223.29:5060>
5411 Call-ID: 129151281eb63a6d2ac3b7f7513df78b@172.26.223.29:5060
5412 CSeq: 102 OPTIONS
5413 User-Agent: FPBX-15.0.16.81(16.13.0)
5414 Date: Tue, 20 Apr 2021 10:55:17 GMT
5415 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5416 Supported: replaces, timer
5417 Content-Length: 0
5418
5419
5420 ---
5421 [2021-04-20 10:55:17] VERBOSE[18872] chan_sip.c: Reliably Transmitting (no NAT) to 172.16.173.148:5060:
5422 OPTIONS sip:172.16.173.148 SIP/2.0
5423 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK068b6016
5424 Max-Forwards: 70
5425 From: "Unknown" <sip:Unknown@172.26.223.29>;tag=as15509688
5426 To: <sip:172.16.173.148>
5427 Contact: <sip:Unknown@172.26.223.29:5060>
5428 Call-ID: 136b5fd5794034494c322c7b7900cb66@172.26.223.29:5060
5429 CSeq: 102 OPTIONS
5430 User-Agent: FPBX-15.0.16.81(16.13.0)
5431 Date: Tue, 20 Apr 2021 10:55:17 GMT
5432 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5433 Supported: replaces, timer
5434 Content-Length: 0
5435
5436
5437 ---
5438 [2021-04-20 10:55:17] VERBOSE[18872] chan_sip.c:
5439 <--- SIP read from UDP:172.16.173.148:5060 --->
5440 SIP/2.0 200 OK
5441 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK09e2afa9;received=172.26.223.29
5442 From: "Unknown" <sip:Unknown@172.26.223.29>;tag=as197395bd
5443 To: <sip:172.16.173.148>;tag=as1e93ddfe
5444 Call-ID: 129151281eb63a6d2ac3b7f7513df78b@172.26.223.29:5060
5445 CSeq: 102 OPTIONS
5446 Server: FPBX-14.0.16(16.13.0)
5447 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5448 Supported: replaces,timer
5449 Contact: <sip:172.16.173.148:5060>
5450 Accept: application/sdp
5451 Content-Length: 0
5452
5453 <------------->
5454 [2021-04-20 10:55:17] VERBOSE[18872] chan_sip.c: --- (12 headers 0 lines) ---
5455 [2021-04-20 10:55:17] VERBOSE[18872] chan_sip.c: Really destroying SIP dialog '129151281eb63a6d2ac3b7f7513df78b@172.26.223.29:5060' Method: OPTIONS
5456 [2021-04-20 10:55:17] VERBOSE[18872] chan_sip.c:
5457 <--- SIP read from UDP:172.16.173.148:5060 --->
5458 SIP/2.0 200 OK
5459 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK068b6016;received=172.26.223.29
5460 From: "Unknown" <sip:Unknown@172.26.223.29>;tag=as15509688
5461 To: <sip:172.16.173.148>;tag=as5d24ee77
5462 Call-ID: 136b5fd5794034494c322c7b7900cb66@172.26.223.29:5060
5463 CSeq: 102 OPTIONS
5464 Server: FPBX-14.0.16(16.13.0)
5465 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5466 Supported: replaces,timer
5467 Contact: <sip:172.16.173.148:5060>
5468 Accept: application/sdp
5469 Content-Length: 0
5470
5471 <------------->
5472 [2021-04-20 10:55:17] VERBOSE[18872] chan_sip.c: --- (12 headers 0 lines) ---
5473 [2021-04-20 10:55:17] VERBOSE[18872] chan_sip.c: Really destroying SIP dialog '136b5fd5794034494c322c7b7900cb66@172.26.223.29:5060' Method: OPTIONS
5474 [2021-04-20 10:55:29] VERBOSE[18872] chan_sip.c:
5475 <--- SIP read from UDP:172.26.218.10:5060 --->
5476 CANCEL sip:102999@172.26.223.29 SIP/2.0
5477 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5478 To: <sip:102999@172.26.223.29>
5479 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5480 CSeq: 1 CANCEL
5481 Via: SIP/2.0/UDP 172.26.218.10:5060;rport;branch=z9hG4bK-66182-18ece55e-44127464-488f8630
5482 Max-Forwards: 70
5483 Supported: 100rel,timer,replaces,UPDATE,INFO
5484 User-Agent: Ericsson-LG Enterprise iPECS-eMG eMG800 2.1.11
5485 Content-Length: 0
5486
5487 <------------->
5488 [2021-04-20 10:55:29] VERBOSE[18872] chan_sip.c: --- (10 headers 0 lines) ---
5489 [2021-04-20 10:55:29] VERBOSE[18872][C-0000000f] chan_sip.c: Sending to 172.26.218.10:5060 (no NAT)
5490 [2021-04-20 10:55:29] VERBOSE[18872][C-0000000f] chan_sip.c:
5491 <--- Reliably Transmitting (no NAT) to 172.26.218.10:5060 --->
5492 SIP/2.0 487 Request Terminated
5493 Via: SIP/2.0/UDP 172.26.218.10:5060;branch=z9hG4bK-66182-18ece55e-44127464-488f8630;received=172.26.218.10;rport=5060
5494 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5495 To: <sip:102999@172.26.223.29>;tag=as4be79c79
5496 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5497 CSeq: 1 INVITE
5498 Server: FPBX-15.0.16.81(16.13.0)
5499 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5500 Supported: replaces, timer
5501 Content-Length: 0
5502
5503
5504 <------------>
5505 [2021-04-20 10:55:29] VERBOSE[18872][C-0000000f] chan_sip.c:
5506 <--- Transmitting (no NAT) to 172.26.218.10:5060 --->
5507 SIP/2.0 200 OK
5508 Via: SIP/2.0/UDP 172.26.218.10:5060;branch=z9hG4bK-66182-18ece55e-44127464-488f8630;received=172.26.218.10;rport=5060
5509 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5510 To: <sip:102999@172.26.223.29>;tag=as4be79c79
5511 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5512 CSeq: 1 CANCEL
5513 Server: FPBX-15.0.16.81(16.13.0)
5514 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5515 Supported: replaces, timer
5516 Content-Length: 0
5517
5518
5519 <------------>
5520 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] chan_sip.c: Scheduling destruction of SIP dialog '0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060' in 6400 ms (Method: INVITE)
5521 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] chan_sip.c: Reliably Transmitting (no NAT) to 172.16.173.148:5060:
5522 CANCEL sip:2999@172.16.173.148 SIP/2.0
5523 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec
5524 Max-Forwards: 70
5525 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5526 To: <sip:2999@172.16.173.148>
5527 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5528 CSeq: 102 CANCEL
5529 User-Agent: FPBX-15.0.16.81(16.13.0)
5530 Content-Length: 0
5531
5532
5533 ---
5534 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] chan_sip.c: Scheduling destruction of SIP dialog '0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060' in 6400 ms (Method: INVITE)
5535 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Spawn extension (ext-trunk, tdial, 10) exited non-zero on 'SIP/172.26.218.10-0000001c'
5536 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] app_stack.c: SIP/172.26.218.10-0000001c Internal Gosub(crm-hangup,s,1) start
5537 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@crm-hangup:1] NoOp("SIP/172.26.218.10-0000001c", "Sending Hangup to CRM") in new stack
5538 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@crm-hangup:2] NoOp("SIP/172.26.218.10-0000001c", "HANGUP CAUSE: 0") in new stack
5539 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@crm-hangup:3] ExecIf("SIP/172.26.218.10-0000001c", "0?Set(__CRM_VOICEMAIL=)") in new stack
5540 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@crm-hangup:4] NoOp("SIP/172.26.218.10-0000001c", "MASTER CHANNEL: 1618916116.28 = 1618916116.28") in new stack
5541 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@crm-hangup:5] GotoIf("SIP/172.26.218.10-0000001c", "0?return") in new stack
5542 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@crm-hangup:6] Set("SIP/172.26.218.10-0000001c", "__CRM_HANGUP=1") in new stack
5543 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@crm-hangup:7] AGI("SIP/172.26.218.10-0000001c", "agi://127.0.0.1/sangomacrm.agi") in new stack
5544 [2021-04-20 10:55:29] VERBOSE[18872] chan_sip.c:
5545 <--- SIP read from UDP:172.26.218.10:5060 --->
5546 ACK sip:102999@172.26.223.29 SIP/2.0
5547 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5548 To: <sip:102999@172.26.223.29>;tag=as4be79c79
5549 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5550 CSeq: 1 ACK
5551 Via: SIP/2.0/UDP 172.26.218.10:5060;rport;branch=z9hG4bK-66182-18ece55e-44127464-488f8630
5552 Max-Forwards: 70
5553 User-Agent: Ericsson-LG Enterprise iPECS-eMG eMG800 2.1.11
5554 Contact: <sip:962191@172.26.218.10:5060;transport=UDP>
5555 Content-Length: 0
5556
5557 <------------->
5558 [2021-04-20 10:55:29] VERBOSE[18872] chan_sip.c: --- (10 headers 0 lines) ---
5559 [2021-04-20 10:55:29] VERBOSE[18872] chan_sip.c:
5560 <--- SIP read from UDP:172.16.173.148:5060 --->
5561 SIP/2.0 487 Request Terminated
5562 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec;received=172.26.223.29
5563 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5564 To: <sip:2999@172.16.173.148>;tag=as34bce41e
5565 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5566 CSeq: 102 INVITE
5567 Server: FPBX-14.0.16(16.13.0)
5568 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5569 Supported: replaces,timer
5570 Content-Length: 0
5571
5572 <------------->
5573 [2021-04-20 10:55:29] VERBOSE[18872] chan_sip.c: --- (10 headers 0 lines) ---
5574 [2021-04-20 10:55:29] VERBOSE[18872][C-0000000f] chan_sip.c: Transmitting (no NAT) to 172.16.173.148:5060:
5575 ACK sip:2999@172.16.173.148:5060 SIP/2.0
5576 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec
5577 Max-Forwards: 70
5578 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5579 To: <sip:2999@172.16.173.148>;tag=as34bce41e
5580 Contact: <sip:962191@172.26.223.29:5060>
5581 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5582 CSeq: 102 ACK
5583 User-Agent: FPBX-15.0.16.81(16.13.0)
5584 Content-Length: 0
5585
5586
5587 ---
5588 [2021-04-20 10:55:29] VERBOSE[18872][C-0000000f] chan_sip.c: Scheduling destruction of SIP dialog '0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060' in 6400 ms (Method: INVITE)
5589 [2021-04-20 10:55:29] VERBOSE[18872] chan_sip.c:
5590 <--- SIP read from UDP:172.16.173.148:5060 --->
5591 SIP/2.0 200 OK
5592 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec;received=172.26.223.29
5593 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5594 To: <sip:2999@172.16.173.148>;tag=as34bce41e
5595 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5596 CSeq: 102 CANCEL
5597 Server: FPBX-14.0.16(16.13.0)
5598 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5599 Supported: replaces,timer
5600 Content-Length: 0
5601
5602 <------------->
5603 [2021-04-20 10:55:29] VERBOSE[18872] chan_sip.c: --- (10 headers 0 lines) ---
5604 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] res_agi.c: <SIP/172.26.218.10-0000001c>AGI Script agi://127.0.0.1/sangomacrm.agi completed, returning 0
5605 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@crm-hangup:8] Return("SIP/172.26.218.10-0000001c", "") in new stack
5606 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] app_stack.c: Spawn extension (ext-trunk, tdial, 10) exited non-zero on 'SIP/172.26.218.10-0000001c'
5607 [2021-04-20 10:55:29] VERBOSE[34827][C-0000000f] app_stack.c: SIP/172.26.218.10-0000001c Internal Gosub(crm-hangup,s,1) complete GOSUB_RETVAL=
5608 [2021-04-20 10:55:30] VERBOSE[18872] chan_sip.c: Really destroying SIP dialog '48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182' Method: ACK
5609 [2021-04-20 10:55:35] VERBOSE[18872] chan_sip.c: Really destroying SIP dialog '0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060' Method: INVITE
5151
5152 <------------->
5153 [2021-04-20 10:55:11] VERBOSE[18872] chan_sip.c: --- (11 headers 0 lines) ---
5154 [2021-04-20 10:55:11] VERBOSE[18872] chan_sip.c: Really destroying SIP dialog '1697ecc52815df53215643067cbe5359@172.26.223.29:5060' Method: OPTIONS
5155 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c:
5156 <--- SIP read from UDP:172.26.218.10:5060 --->
5157 INVITE sip:102999@172.26.223.29 SIP/2.0
5158 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5159 To: <sip:102999@172.26.223.29>
5160 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5161 CSeq: 1 INVITE
5162 Via: SIP/2.0/UDP 172.26.218.10:5060;rport;branch=z9hG4bK-66182-18ece55e-44127464-488f8630
5163 Max-Forwards: 70
5164 Allow: INVITE,ACK,OPTIONS,BYE,CANCEL,REGISTER,REFER,SUBSCRIBE,NOTIFY,MESSAGE,INFO,PRACK,UPDATE
5165 Supported: replaces,UPDATE,INFO
5166 P-Asserted-Identity: "Shkutov Pavel"<sip:962191@172.26.223.29>
5167 Remote-Party-ID: <sip:962191@172.26.218.10>; party=calling; privacy=off; screen=yes
5168 Privacy: none
5169 User-Agent: Ericsson-LG Enterprise iPECS-eMG eMG800 2.1.11
5170 Contact: "Shkutov Pavel"<sip:962191@172.26.218.10:5060;transport=UDP>
5171 Content-Type: application/sdp
5172 Content-Length: 231
5173
5174 v=0
5175 o=iPECS-eMG 22 22 IN IP4 172.26.218.10
5176 s=iPECS-eMG SIP
5177 c=IN IP4 172.26.218.10
5178 t=0 0
5179 m=audio 20538 RTP/AVP 18 101
5180 a=rtpmap:18 G729/8000
5181 a=fmtp:18 annexb=no
5182 a=rtpmap:101 telephone-event/8000
5183 a=fmtp:101 0-15
5184 a=sendrecv
5185 <------------->
5186 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: --- (16 headers 11 lines) ---
5187 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: Sending to 172.26.218.10:5060 (no NAT)
5188 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Sending to 172.26.218.10:5060 (no NAT)
5189 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Using INVITE request as basis request - 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5190 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found peer '172.26.218.10' for '962191' from 172.26.218.10:5060
5191 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] netsock2.c: Using SIP RTP TOS bits 184
5192 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] netsock2.c: Using SIP RTP CoS mark 5
5193 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Got SDP version 22 and unique parts [iPECS-eMG 22 IN IP4 172.26.218.10]
5194 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found RTP audio format 18
5195 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found RTP audio format 101
5196 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found audio description format G729 for ID 18
5197 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Found audio description format telephone-event for ID 101
5198 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Capabilities: us - (g729), peer - audio=(g729)/video=(nothing)/text=(nothing), combined - (g729)
5199 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Non-codec capabilities (dtmf): us - 0x1 (telephone-event|), peer - 0x1 (telephone-event|), combined - 0x1 (telephone-event|)
5200 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Peer audio RTP is at port 172.26.218.10:20538
5201 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c: Looking for 102999 in from-trunk (domain 172.26.223.29)
5202 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] sip/route.c: sip_route_dump: route/path hop: <sip:962191@172.26.218.10:5060;transport=UDP>
5203 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] chan_sip.c:
5204 <--- Transmitting (no NAT) to 172.26.218.10:5060 --->
5205 SIP/2.0 100 Trying
5206 Via: SIP/2.0/UDP 172.26.218.10:5060;branch=z9hG4bK-66182-18ece55e-44127464-488f8630;received=172.26.218.10;rport=5060
5207 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5208 To: <sip:102999@172.26.223.29>
5209 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5210 CSeq: 1 INVITE
5211 Server: FPBX-15.0.16.81(16.13.0)
5212 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5213 Supported: replaces, timer
5214 Contact: <sip:102999@172.26.223.29:5060>
5215 Content-Length: 0
5216
5217
5218 <------------>
5219 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:1] Set("SIP/172.26.218.10-0000001c", "__DIRECTION=INBOUND") in new stack
5220 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:2] Gosub("SIP/172.26.218.10-0000001c", "sub-record-check,s,1(in,102999,dontcare)") in new stack
5221 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:1] GotoIf("SIP/172.26.218.10-0000001c", "0?initialized") in new stack
5222 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:2] Set("SIP/172.26.218.10-0000001c", "__REC_STATUS=INITIALIZED") in new stack
5223 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:3] Set("SIP/172.26.218.10-0000001c", "NOW=1618916116") in new stack
5224 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:4] Set("SIP/172.26.218.10-0000001c", "__DAY=20") in new stack
5225 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:5] Set("SIP/172.26.218.10-0000001c", "__MONTH=04") in new stack
5226 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:6] Set("SIP/172.26.218.10-0000001c", "__YEAR=2021") in new stack
5227 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:7] Set("SIP/172.26.218.10-0000001c", "__TIMESTR=20210420-105516") in new stack
5228 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:8] Set("SIP/172.26.218.10-0000001c", "__FROMEXTEN=unknown") in new stack
5229 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:9] Set("SIP/172.26.218.10-0000001c", "__MON_FMT=wav") in new stack
5230 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:10] NoOp("SIP/172.26.218.10-0000001c", "Recordings initialized") in new stack
5231 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:11] ExecIf("SIP/172.26.218.10-0000001c", "0?Set(ARG3=dontcare)") in new stack
5232 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:12] Set("SIP/172.26.218.10-0000001c", "REC_POLICY_MODE_SAVE=") in new stack
5233 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:13] ExecIf("SIP/172.26.218.10-0000001c", "0?Set(REC_STATUS=NO)") in new stack
5234 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:14] GotoIf("SIP/172.26.218.10-0000001c", "2?checkaction") in new stack
5235 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (sub-record-check,s,17)
5236 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-record-check:17] GotoIf("SIP/172.26.218.10-0000001c", "1?sub-record-check,in,1") in new stack
5237 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (sub-record-check,in,1)
5238 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:1] NoOp("SIP/172.26.218.10-0000001c", "Inbound Recording Check to 102999") in new stack
5239 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:2] Set("SIP/172.26.218.10-0000001c", "FROMEXTEN=unknown") in new stack
5240 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:3] ExecIf("SIP/172.26.218.10-0000001c", "6?Set(FROMEXTEN=962191)") in new stack
5241 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:4] Gosub("SIP/172.26.218.10-0000001c", "recordcheck,1(dontcare,in,102999)") in new stack
5242 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [recordcheck@sub-record-check:1] NoOp("SIP/172.26.218.10-0000001c", "Starting recording check against dontcare") in new stack
5243 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [recordcheck@sub-record-check:2] Goto("SIP/172.26.218.10-0000001c", "dontcare") in new stack
5244 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (sub-record-check,recordcheck,3)
5245 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [recordcheck@sub-record-check:3] Return("SIP/172.26.218.10-0000001c", "") in new stack
5246 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [in@sub-record-check:5] Return("SIP/172.26.218.10-0000001c", "") in new stack
5247 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:3] Set("SIP/172.26.218.10-0000001c", "CHANNEL(tonezone)=us") in new stack
5248 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:4] Set("SIP/172.26.218.10-0000001c", "__FROM_DID=102999") in new stack
5249 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:5] Set("SIP/172.26.218.10-0000001c", "returnhere=1") in new stack
5250 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:6] Gosub("SIP/172.26.218.10-0000001c", "app-blacklist-check,s,1()") in new stack
5251 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@app-blacklist-check:1] GotoIf("SIP/172.26.218.10-0000001c", "0?blacklisted") in new stack
5252 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@app-blacklist-check:2] Set("SIP/172.26.218.10-0000001c", "CALLED_BLACKLIST=1") in new stack
5253 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@app-blacklist-check:3] Return("SIP/172.26.218.10-0000001c", "") in new stack
5254 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:7] Set("SIP/172.26.218.10-0000001c", "CDR(did)=102999") in new stack
5255 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:8] GotoIf("SIP/172.26.218.10-0000001c", "0?") in new stack
5256 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:9] ExecIf("SIP/172.26.218.10-0000001c", "1 ?Set(CALLERID(name)=962191)") in new stack
5257 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:10] Set("SIP/172.26.218.10-0000001c", "__MOHCLASS=") in new stack
5258 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:11] Set("SIP/172.26.218.10-0000001c", "__REVERSAL_REJECT=FALSE") in new stack
5259 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:12] GotoIf("SIP/172.26.218.10-0000001c", "1?post-reverse-charge") in new stack
5260 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (from-trunk,102999,14)
5261 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:14] NoOp("SIP/172.26.218.10-0000001c", "") in new stack
5262 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:15] Set("SIP/172.26.218.10-0000001c", "__CALLINGNAMEPRES_SV=allowed_not_screened") in new stack
5263 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:16] Set("SIP/172.26.218.10-0000001c", "__CALLINGNUMPRES_SV=allowed_not_screened") in new stack
5264 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:17] Set("SIP/172.26.218.10-0000001c", "CALLERID(name-pres)=allowed_not_screened") in new stack
5265 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:18] Set("SIP/172.26.218.10-0000001c", "CALLERID(num-pres)=allowed_not_screened") in new stack
5266 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:19] NoOp("SIP/172.26.218.10-0000001c", "CallerID Entry Point") in new stack
5267 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:20] Set("SIP/172.26.218.10-0000001c", "__CRM_DIRECTION=INBOUND") in new stack
5268 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:21] Set("SIP/172.26.218.10-0000001c", "__CRM_SOURCE=962191") in new stack
5269 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:22] Set("SIP/172.26.218.10-0000001c", "__CRM_LINKEDID=1618916116.28") in new stack
5270 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:23] AGI("SIP/172.26.218.10-0000001c", "agi://127.0.0.1/sangomacrm.agi,true") in new stack
5271 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] res_agi.c: <SIP/172.26.218.10-0000001c>AGI Script agi://127.0.0.1/sangomacrm.agi completed, returning 0
5272 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:24] ExecIf("SIP/172.26.218.10-0000001c", "1?Set(CHANNEL(hangup_handler_push)=crm-hangup,s,1)") in new stack
5273 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [102999@from-trunk:25] Goto("SIP/172.26.218.10-0000001c", "ext-trunk,1,1") in new stack
5274 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (ext-trunk,1,1)
5275 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [1@ext-trunk:1] Set("SIP/172.26.218.10-0000001c", "TDIAL_STRING=SIP/10-SPB_test_node_2 trunkOUT") in new stack
5276 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [1@ext-trunk:2] Set("SIP/172.26.218.10-0000001c", "DIAL_TRUNK=1") in new stack
5277 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [1@ext-trunk:3] Goto("SIP/172.26.218.10-0000001c", "ext-trunk,tdial,1") in new stack
5278 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (ext-trunk,tdial,1)
5279 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:1] Set("SIP/172.26.218.10-0000001c", "OUTBOUND_GROUP=OUT_1") in new stack
5280 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:2] GotoIf("SIP/172.26.218.10-0000001c", "1?nomax") in new stack
5281 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (ext-trunk,tdial,4)
5282 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:4] ExecIf("SIP/172.26.218.10-0000001c", "1?Set(CALLERPRES(name-pres)=allowed_not_screened)") in new stack
5283 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:5] ExecIf("SIP/172.26.218.10-0000001c", "1?Set(CALLERPRES(num-pres)=allowed_not_screened)") in new stack
5284 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:6] Set("SIP/172.26.218.10-0000001c", "DIAL_NUMBER=102999") in new stack
5285 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:7] GosubIf("SIP/172.26.218.10-0000001c", "1?sub-flp-1,s,1()") in new stack
5286 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-flp-1:1] ExecIf("SIP/172.26.218.10-0000001c", "1?Set(TARGET_FLP_1=2999)") in new stack
5287 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-flp-1:2] GotoIf("SIP/172.26.218.10-0000001c", "1?match") in new stack
5288 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx_builtins.c: Goto (sub-flp-1,s,4)
5289 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-flp-1:4] Set("SIP/172.26.218.10-0000001c", "DIAL_NUMBER=2999") in new stack
5290 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [s@sub-flp-1:5] Return("SIP/172.26.218.10-0000001c", "") in new stack
5291 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:8] Set("SIP/172.26.218.10-0000001c", "OUTNUM=2999") in new stack
5292 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:9] Set("SIP/172.26.218.10-0000001c", "DIAL_TRUNK_OPTIONS=T") in new stack
5293 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] pbx.c: Executing [tdial@ext-trunk:10] Dial("SIP/172.26.218.10-0000001c", "SIP/10-SPB_test_node_2 trunkOUT/2999,300,T") in new stack
5294 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] netsock2.c: Using SIP RTP TOS bits 184
5295 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] netsock2.c: Using SIP RTP CoS mark 5
5296 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c: Audio is at 17736
5297 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c: Adding codec g729 to SDP
5298 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c: Adding non-codec 0x1 (telephone-event) to SDP
5299 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c: Reliably Transmitting (no NAT) to 172.16.173.148:5060:
5300 INVITE sip:2999@172.16.173.148 SIP/2.0
5301 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec
5302 Max-Forwards: 70
5303 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5304 To: <sip:2999@172.16.173.148>
5305 Contact: <sip:962191@172.26.223.29:5060>
5306 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5307 CSeq: 102 INVITE
5308 User-Agent: FPBX-15.0.16.81(16.13.0)
5309 Date: Tue, 20 Apr 2021 10:55:16 GMT
5310 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5311 Supported: replaces, timer
5312 Remote-Party-ID: "962191" <sip:962191@172.26.223.29>;party=calling;privacy=off;screen=no
5313 Content-Type: application/sdp
5314 Content-Length: 277
5315
5316 v=0
5317 o=root 1979690048 1979690048 IN IP4 172.26.223.29
5318 s=Asterisk PBX 16.13.0
5319 c=IN IP4 172.26.223.29
5320 t=0 0
5321 m=audio 17736 RTP/AVP 18 101
5322 a=rtpmap:18 G729/8000
5323 a=fmtp:18 annexb=no
5324 a=rtpmap:101 telephone-event/8000
5325 a=fmtp:101 0-16
5326 a=ptime:20
5327 a=maxptime:230
5328 a=sendrecv
5329
5330 ---
5331 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] app_dial.c: Called SIP/10-SPB_test_node_2 trunkOUT/2999
5332 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c:
5333 <--- SIP read from UDP:172.16.173.148:5060 --->
5334 SIP/2.0 100 Trying
5335 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec;received=172.26.223.29
5336 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5337 To: <sip:2999@172.16.173.148>
5338 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5339 CSeq: 102 INVITE
5340 Server: FPBX-14.0.16(16.13.0)
5341 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5342 Supported: replaces,timer
5343 Session-Expires: 1800;refresher=uas
5344 Contact: <sip:2999@172.16.173.148:5060>
5345 Content-Length: 0
5346
5347 <------------->
5348 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: --- (12 headers 0 lines) ---
5349 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c:
5350 <--- SIP read from UDP:172.16.173.148:5060 --->
5351 SIP/2.0 180 Ringing
5352 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK54af0aec;received=172.26.223.29
5353 From: "962191" <sip:962191@172.26.223.29>;tag=as0cc0ee63
5354 To: <sip:2999@172.16.173.148>;tag=as34bce41e
5355 Call-ID: 0c06a95f125a5a07390cf3741e2e38ba@172.26.223.29:5060
5356 CSeq: 102 INVITE
5357 Server: FPBX-14.0.16(16.13.0)
5358 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5359 Supported: replaces,timer
5360 Session-Expires: 1800;refresher=uas
5361 Contact: <sip:2999@172.16.173.148:5060>
5362 Content-Length: 0
5363
5364 <------------->
5365 [2021-04-20 10:55:16] VERBOSE[18872] chan_sip.c: --- (12 headers 0 lines) ---
5366 [2021-04-20 10:55:16] VERBOSE[18872][C-0000000f] sip/route.c: sip_route_dump: route/path hop: <sip:2999@172.16.173.148:5060>
5367 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] app_dial.c: SIP/10-SPB_test_node_2 trunkOUT-0000001d is ringing
5368 [2021-04-20 10:55:16] VERBOSE[34827][C-0000000f] chan_sip.c:
5369 <--- Transmitting (no NAT) to 172.26.218.10:5060 --->
5370 SIP/2.0 180 Ringing
5371 Via: SIP/2.0/UDP 172.26.218.10:5060;branch=z9hG4bK-66182-18ece55e-44127464-488f8630;received=172.26.218.10;rport=5060
5372 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a72418-ada1aac-13c4-65014-66182-4d59761a-66182
5373 To: <sip:102999@172.26.223.29>;tag=as4be79c79
5374 Call-ID: 48b1d928-ada1aac-13c4-65014-66182-40a8d8bc-66182
5375 CSeq: 1 INVITE
5376 Server: FPBX-15.0.16.81(16.13.0)
5377 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
5378 Supported: replaces, timer
5379 Contact: <sip:102999@172.26.223.29:5060>
5380 Content-Length: 0

ded · Сообщение **ded** » 21 апр 2021, 18:26

маршрут с FreePBX 1 на FreePBX 2 поставить как внутрикорпоративный (будет зелёненькой иконкой в списке), тогда номера и имена не меняются при транзите.
И ваш вопрос не по АОНу
а по Caller ID.

А'О'Н (англ. CLI - сокращение от «Calling Line Identification») — технология Автоматического Определения Номера. Этот термин, после массового появления бытовых устройств с определением номера вызывающего абонента в начале 1990-х годов, был так же перенесен и на эти устройства. Информация о номере вызывающего абонента передаётся в виде кода, носящего название «Безынтервальный Пакет» (код 2 из 6) в виде одновременной передачи 2 частот из 6 доступных в этом коде в интервале от 700 до 1700 Гц,

https://ru.wikipedia.org/wiki/Caller ID

Andy · Сообщение **Andy** » 22 апр 2021, 11:51

Добрый день,

Поставил. Зелёным загорелось. Но ситуация не поменялась(.

Вот лог:

PRIME_BBCODE_SPOILER_SHOW PRIME_BBCODE_SPOILER:

[2021-04-22 08:16:16] VERBOSE[18872] chan_sip.c:
32849 <--- SIP read from UDP:172.26.218.10:5060 --->
32850 INVITE sip:102999@172.26.223.29 SIP/2.0
32851 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a2e448-ada1aac-13c4-65014-8df43-59564b6f-8df43
32852 To: <sip:102999@172.26.223.29>
32853 Call-ID: 48b236e8-ada1aac-13c4-65014-8df43-28fabbb9-8df43
32854 CSeq: 1 INVITE
32855 Via: SIP/2.0/UDP 172.26.218.10:5060;rport;branch=z9hG4bK-8df43-22a81eb1-1d5a56cc-48912f70
32856 Max-Forwards: 70
32857 Allow: INVITE,ACK,OPTIONS,BYE,CANCEL,REGISTER,REFER,SUBSCRIBE,NOTIFY,MESSAGE,INFO,PRACK,UPDATE
32858 Supported: replaces,UPDATE,INFO
32859 P-Asserted-Identity: "Shkutov Pavel"<sip:962191@172.26.223.29>
32860 Remote-Party-ID: <sip:962191@172.26.218.10>; party=calling; privacy=off; screen=yes
32861 Privacy: none
32862 User-Agent: Ericsson-LG Enterprise iPECS-eMG eMG800 2.1.11
32863 Contact: "Shkutov Pavel"<sip:962191@172.26.218.10:5060;transport=UDP>
32864 Content-Type: application/sdp
32865 Content-Length: 231
32866
32867 v=0
32868 o=iPECS-eMG 22 22 IN IP4 172.26.218.10
32869 s=iPECS-eMG SIP
32870 c=IN IP4 172.26.218.10
32871 t=0 0
32872 m=audio 20538 RTP/AVP 18 101
32873 a=rtpmap:18 G729/8000
32874 a=fmtp:18 annexb=no
32875 a=rtpmap:101 telephone-event/8000
32876 a=fmtp:101 0-15
32877 a=sendrecv
32878 <------------->
32879 [2021-04-22 08:16:16] VERBOSE[18872] chan_sip.c: --- (16 headers 11 lines) ---
32880 [2021-04-22 08:16:16] VERBOSE[18872] chan_sip.c: Sending to 172.26.218.10:5060 (no NAT)
32881 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Sending to 172.26.218.10:5060 (no NAT)
32882 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Using INVITE request as basis request - 48b236e8-ada1aac-13c4-65014-8df43-28fabbb9-8df43
32883 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Found peer '172.26.218.10' for '962191' from 172.26.218.10:5060
32884 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] netsock2.c: Using SIP RTP TOS bits 184
32885 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] netsock2.c: Using SIP RTP CoS mark 5
32886 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Got SDP version 22 and unique parts [iPECS-eMG 22 IN IP4 172.26.218.10]
32887 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Found RTP audio format 18
32888 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Found RTP audio format 101
32889 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Found audio description format G729 for ID 18
32890 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Found audio description format telephone-event for ID 101
32891 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Capabilities: us - (g729), peer - audio=(g729)/video=(nothing)/text=(nothing), combined - (g729)
32892 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Non-codec capabilities (dtmf): us - 0x1 (telephone-event|), peer - 0x1 (telephone-event|), combined - 0x1 (telephone-event|)
32893 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Peer audio RTP is at port 172.26.218.10:20538
32894 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c: Looking for 102999 in from-trunk (domain 172.26.223.29)
32895 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] sip/route.c: sip_route_dump: route/path hop: <sip:962191@172.26.218.10:5060;transport=UDP>
32896 [2021-04-22 08:16:16] VERBOSE[18872][C-00000012] chan_sip.c:
32897 <--- Transmitting (no NAT) to 172.26.218.10:5060 --->
32898 SIP/2.0 100 Trying
32899 Via: SIP/2.0/UDP 172.26.218.10:5060;branch=z9hG4bK-8df43-22a81eb1-1d5a56cc-48912f70;received=172.26.218.10;rport=5060
32900 From: "Shkutov Pavel"<sip:962191@172.26.223.29>;tag=48a2e448-ada1aac-13c4-65014-8df43-59564b6f-8df43
32901 To: <sip:102999@172.26.223.29>
32902 Call-ID: 48b236e8-ada1aac-13c4-65014-8df43-28fabbb9-8df43
32903 CSeq: 1 INVITE
32904 Server: FPBX-15.0.16.81(16.13.0)
32905 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
32906 Supported: replaces, timer
32907 Contact: <sip:102999@172.26.223.29:5060>
32908 Content-Length: 0
32909
32910
32911 <------------>
32912 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:1] Set("SIP/172.26.218.10-00000022", "__DIRECTION=INBOUND") in new stack
32913 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:2] Gosub("SIP/172.26.218.10-00000022", "sub-record-check,s,1(in,102999,dontcare)") in new stack
32914 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:1] GotoIf("SIP/172.26.218.10-00000022", "0?initialized") in new stack
32915 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:2] Set("SIP/172.26.218.10-00000022", "__REC_STATUS=INITIALIZED") in new stack
32916 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:3] Set("SIP/172.26.218.10-00000022", "NOW=1619079376") in new stack
32917 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:4] Set("SIP/172.26.218.10-00000022", "__DAY=22") in new stack
32918 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:5] Set("SIP/172.26.218.10-00000022", "__MONTH=04") in new stack
32919 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:6] Set("SIP/172.26.218.10-00000022", "__YEAR=2021") in new stack
32920 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:7] Set("SIP/172.26.218.10-00000022", "__TIMESTR=20210422-081616") in new stack
32921 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:8] Set("SIP/172.26.218.10-00000022", "__FROMEXTEN=unknown") in new stack
32922 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:9] Set("SIP/172.26.218.10-00000022", "__MON_FMT=wav") in new stack
32923 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:10] NoOp("SIP/172.26.218.10-00000022", "Recordings initialized") in new stack
32924 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:11] ExecIf("SIP/172.26.218.10-00000022", "0?Set(ARG3=dontcare)") in new stack
32925 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:12] Set("SIP/172.26.218.10-00000022", "REC_POLICY_MODE_SAVE=") in new stack
32926 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:13] ExecIf("SIP/172.26.218.10-00000022", "0?Set(REC_STATUS=NO)") in new stack
32927 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:14] GotoIf("SIP/172.26.218.10-00000022", "2?checkaction") in new stack
32928 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx_builtins.c: Goto (sub-record-check,s,17)
32929 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-record-check:17] GotoIf("SIP/172.26.218.10-00000022", "1?sub-record-check,in,1") in new stack
32930 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx_builtins.c: Goto (sub-record-check,in,1)
32931 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [in@sub-record-check:1] NoOp("SIP/172.26.218.10-00000022", "Inbound Recording Check to 102999") in new stack
32932 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [in@sub-record-check:2] Set("SIP/172.26.218.10-00000022", "FROMEXTEN=unknown") in new stack
32933 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [in@sub-record-check:3] ExecIf("SIP/172.26.218.10-00000022", "6?Set(FROMEXTEN=962191)") in new stack
32934 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [in@sub-record-check:4] Gosub("SIP/172.26.218.10-00000022", "recordcheck,1(dontcare,in,102999)") in new stack
32935 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [recordcheck@sub-record-check:1] NoOp("SIP/172.26.218.10-00000022", "Starting recording check against dontcare") in new stack
32936 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [recordcheck@sub-record-check:2] Goto("SIP/172.26.218.10-00000022", "dontcare") in new stack
32937 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx_builtins.c: Goto (sub-record-check,recordcheck,3)
32938 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [recordcheck@sub-record-check:3] Return("SIP/172.26.218.10-00000022", "") in new stack
32939 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [in@sub-record-check:5] Return("SIP/172.26.218.10-00000022", "") in new stack
32940 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:3] Set("SIP/172.26.218.10-00000022", "CHANNEL(tonezone)=us") in new stack
32941 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:4] Set("SIP/172.26.218.10-00000022", "__FROM_DID=102999") in new stack
32942 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:5] Set("SIP/172.26.218.10-00000022", "returnhere=1") in new stack
32943 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:6] Gosub("SIP/172.26.218.10-00000022", "app-blacklist-check,s,1()") in new stack
32944 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@app-blacklist-check:1] GotoIf("SIP/172.26.218.10-00000022", "0?blacklisted") in new stack
32945 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@app-blacklist-check:2] Set("SIP/172.26.218.10-00000022", "CALLED_BLACKLIST=1") in new stack
32946 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@app-blacklist-check:3] Return("SIP/172.26.218.10-00000022", "") in new stack
32947 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:7] Set("SIP/172.26.218.10-00000022", "CDR(did)=102999") in new stack
32948 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:8] GotoIf("SIP/172.26.218.10-00000022", "0?") in new stack
32949 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:9] ExecIf("SIP/172.26.218.10-00000022", "1 ?Set(CALLERID(name)=962191)") in new stack
32950 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:10] Set("SIP/172.26.218.10-00000022", "__MOHCLASS=") in new stack
32951 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:11] Set("SIP/172.26.218.10-00000022", "__REVERSAL_REJECT=FALSE") in new stack
32952 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:12] GotoIf("SIP/172.26.218.10-00000022", "1?post-reverse-charge") in new stack
32953 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx_builtins.c: Goto (from-trunk,102999,14)
32954 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:14] NoOp("SIP/172.26.218.10-00000022", "") in new stack
32955 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:15] Set("SIP/172.26.218.10-00000022", "__CALLINGNAMEPRES_SV=allowed_not_screened") in new stack
32956 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:16] Set("SIP/172.26.218.10-00000022", "__CALLINGNUMPRES_SV=allowed_not_screened") in new stack
32957 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:17] Set("SIP/172.26.218.10-00000022", "CALLERID(name-pres)=allowed_not_screened") in new stack
32958 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:18] Set("SIP/172.26.218.10-00000022", "CALLERID(num-pres)=allowed_not_screened") in new stack
32959 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:19] NoOp("SIP/172.26.218.10-00000022", "CallerID Entry Point") in new stack
32960 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:20] Set("SIP/172.26.218.10-00000022", "__CRM_DIRECTION=INBOUND") in new stack
32961 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:21] Set("SIP/172.26.218.10-00000022", "__CRM_SOURCE=962191") in new stack
32962 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:22] Set("SIP/172.26.218.10-00000022", "__CRM_LINKEDID=1619079376.34") in new stack
32963 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:23] AGI("SIP/172.26.218.10-00000022", "agi://127.0.0.1/sangomacrm.agi,true") in new stack
32964 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] res_agi.c: <SIP/172.26.218.10-00000022>AGI Script agi://127.0.0.1/sangomacrm.agi completed, returning 0
32965 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:24] ExecIf("SIP/172.26.218.10-00000022", "1?Set(CHANNEL(hangup_handler_push)=crm-hangup,s,1)") in new stack
32966 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [102999@from-trunk:25] Goto("SIP/172.26.218.10-00000022", "ext-trunk,1,1") in new stack
32967 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx_builtins.c: Goto (ext-trunk,1,1)
32968 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [1@ext-trunk:1] Set("SIP/172.26.218.10-00000022", "TDIAL_STRING=SIP/10-SPB_test_node_2 trunkOUT") in new stack
32969 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [1@ext-trunk:2] Set("SIP/172.26.218.10-00000022", "DIAL_TRUNK=1") in new stack
32970 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [1@ext-trunk:3] Goto("SIP/172.26.218.10-00000022", "ext-trunk,tdial,1") in new stack
32971 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx_builtins.c: Goto (ext-trunk,tdial,1)
32972 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:1] Set("SIP/172.26.218.10-00000022", "OUTBOUND_GROUP=OUT_1") in new stack
32973 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:2] GotoIf("SIP/172.26.218.10-00000022", "1?nomax") in new stack
32974 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx_builtins.c: Goto (ext-trunk,tdial,4)
32975 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:4] ExecIf("SIP/172.26.218.10-00000022", "1?Set(CALLERPRES(name-pres)=allowed_not_screened)") in new stack
32976 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:5] ExecIf("SIP/172.26.218.10-00000022", "1?Set(CALLERPRES(num-pres)=allowed_not_screened)") in new stack
32977 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:6] Set("SIP/172.26.218.10-00000022", "DIAL_NUMBER=102999") in new stack
32978 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:7] GosubIf("SIP/172.26.218.10-00000022", "1?sub-flp-1,s,1()") in new stack
32979 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-flp-1:1] ExecIf("SIP/172.26.218.10-00000022", "1?Set(TARGET_FLP_1=2999)") in new stack
32980 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-flp-1:2] GotoIf("SIP/172.26.218.10-00000022", "1?match") in new stack
32981 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx_builtins.c: Goto (sub-flp-1,s,4)
32982 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-flp-1:4] Set("SIP/172.26.218.10-00000022", "DIAL_NUMBER=2999") in new stack
32983 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [s@sub-flp-1:5] Return("SIP/172.26.218.10-00000022", "") in new stack
32984 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:8] Set("SIP/172.26.218.10-00000022", "OUTNUM=2999") in new stack
32985 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:9] Set("SIP/172.26.218.10-00000022", "DIAL_TRUNK_OPTIONS=T") in new stack
32986 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] pbx.c: Executing [tdial@ext-trunk:10] Dial("SIP/172.26.218.10-00000022", "SIP/10-SPB_test_node_2 trunkOUT/2999,300,T") in new stack
32987 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] netsock2.c: Using SIP RTP TOS bits 184
32988 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] netsock2.c: Using SIP RTP CoS mark 5
32989 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] chan_sip.c: Audio is at 19074
32990 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] chan_sip.c: Adding codec g729 to SDP
32991 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] chan_sip.c: Adding non-codec 0x1 (telephone-event) to SDP
32992 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] chan_sip.c: Reliably Transmitting (no NAT) to 172.16.173.148:5060:
32993 INVITE sip:2999@172.16.173.148 SIP/2.0
32994 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK0e546cea
32995 Max-Forwards: 70
32996 From: "962191" <sip:962191@172.26.223.29>;tag=as4bb2f08e
32997 To: <sip:2999@172.16.173.148>
32998 Contact: <sip:962191@172.26.223.29:5060>
32999 Call-ID: 742aefbe5c835d9b7af5162a574b8a7c@172.26.223.29:5060
33000 CSeq: 102 INVITE
33001 User-Agent: FPBX-15.0.16.81(16.13.0)
33002 Date: Thu, 22 Apr 2021 08:16:16 GMT
33003 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
33004 Supported: replaces, timer
33005 Remote-Party-ID: "962191" <sip:962191@172.26.223.29>;party=calling;privacy=off;screen=no
33006 Content-Type: application/sdp
33007 Content-Length: 277
33008
33009 v=0
33010 o=root 2026536914 2026536914 IN IP4 172.26.223.29
33011 s=Asterisk PBX 16.13.0
33012 c=IN IP4 172.26.223.29
33013 t=0 0
33014 m=audio 19074 RTP/AVP 18 101
33015 a=rtpmap:18 G729/8000
33016 a=fmtp:18 annexb=no
33017 a=rtpmap:101 telephone-event/8000
33018 a=fmtp:101 0-16
33019 a=ptime:20
33020 a=maxptime:230
33021 a=sendrecv
33022
33023 ---
33024 [2021-04-22 08:16:16] VERBOSE[32780][C-00000012] app_dial.c: Called SIP/10-SPB_test_node_2 trunkOUT/2999
33025 [2021-04-22 08:16:16] VERBOSE[18872] chan_sip.c:
33026 <--- SIP read from UDP:172.16.173.148:5060 --->
33027 SIP/2.0 100 Trying
33028 Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK0e546cea;received=172.26.223.29
33029 From: "962191" <sip:962191@172.26.223.29>;tag=as4bb2f08e
33030 To: <sip:2999@172.16.173.148>
33031 Call-ID: 742aefbe5c835d9b7af5162a574b8a7c@172.26.223.29:5060
33032 CSeq: 102 INVITE
33033 Server: FPBX-14.0.16(16.13.0)
33034 Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
33035 Supported: replaces,timer
33036 Session-Expires: 1800;refresher=uas
33037 Contact: <sip:2999@172.16.173.148:5060>
33038 Content-Length: 0

Zavr2008 · Сообщение **Zavr2008** » 22 апр 2021, 12:05

5167 Remote-Party-ID: <sip:962191@172.26.218.10>; party=calling; privacy=off; screen=yes

Сие означает что знаете?
Там еще стоит screen=yes. Это напрягает.
Если нужно брать CallerId(name) из From, тогда нужно установить trustrpid=no. Тогда Asterisk не будет трогать RPID и будет брать из From.

ded · Сообщение **ded** » 22 апр 2021, 12:25

Зелёненький должен быть на исходящей станции. А на принимающей - Executing [102999@from-trunk:9] означает, что вы принимаете звонок с внешней стороны, и вам для разруливания внутри требуются Inbound routes by DID. Надо указать ей внутренний контекст from-internal (вместо from-trunk) и тогда внутрикорпоративный маршрут будет работать без дополнительных манипуляций с Inbound routes.

Andy · Сообщение **Andy** » 23 апр 2021, 16:49

Ded и Zavr2008 Спасибо за помощь!

Вариант Zavr2008 помог.

А чем напрягает screen=yes ?
Я как понимаю это на ДП настраивается.

ded · Сообщение **ded** » 23 апр 2021, 17:15

from-internal тоже бы помог.

Call Screening — экранирование входящих звонков. Система просит представиться, затем ставит входящий звонок на удержание, и докладывает абоненту о входящем.

Это конкретный функционал. А в общем смысле - экранирование, этот параметр подавляет передачу истинного CID.

Моля, имайте предвид, че съдържанието на тази страница е машинен превод, чиято цел е да осигури възможност за основно разбиране на нашето съдържание. Това е буквален превод и някои думи може да не са преведени точно. Европейската комисия не носи отговорност за точността на преводите, за които е използвана тази услуга.

Европейската рамка за скрининг на преките чуждестранни инвестиции (ПЧИ) ще позволи на държавите — членки на ЕС, и на Комисията да си сътрудничат и да обменят информация относно инвестициите от трети държави, които могат да засегнат сигурността или обществения ред в ЕС.

Регламентът за създаване на рамка на ЕС за скрининг на ПЧИ влезе в сила на 10 април 2019 г. и неговият механизъм за сътрудничество ще се прилага от 11 октомври 2020 г.

Регламентът допълва цялостната рамка на ЕС за инвестиционната политика, като гарантира, че отвореността на ЕС към ПЧИ е балансирана чрез подходящи проверки на потенциалните заплахи.

Повече информация за скрининга на ПЧИ е на разположение на уебсайта на ГД „Търговия“.

Andy · Сообщение **Andy** » 30 апр 2021, 12:04

Ded, спасибо.

В итоге переделал на from-internal на транзитном астериске. Сделал оутгоинг роуты и все нормально.
Подскажите, пожалуйста ещё в двух вопросах.

Напомню нашу схему.
Freepbx 1 <---SIP---> Freepbx 2 <---SIP---> LG

172.26.223.29
Freepbx 2

172.26.218.10
ipecs LG

172.16.173.148
Freepbx 1

Когда звоню с LG.
То с ФИО благодаря вам мы разобрались и на freepbx 1 всё отображается.

Но вот когда звоню. с Freepbx 1 на LG, то на LG идёт только номер. при этом судя по логам сама LG не воспринимает ФИО:
Нужно в ней смотреть?

И второй вопрос, когда на LG снимают трубку.
У меня на FREEPBX 1 высвечивается
CID: и мой номер 2999
Можно CID убрать, только номер оставить?

PRIME_BBCODE_SPOILER_SHOW PRIME_BBCODE_SPOILER:

Frame 368: 977 bytes on wire (7816 bits), 977 bytes captured (7816 bits)
Ethernet II, Src: Cisco_e8:e6:11 (00:77:8d:e8:e6:11), Dst: Ericsson_08:d3:7a (b0:61:c7:08:d3:7a)
Internet Protocol Version 4, Src: 172.26.223.29, Dst: 172.26.218.10
User Datagram Protocol, Src Port: 5060, Dst Port: 5060
Session Initiation Protocol (INVITE)
Request-Line: INVITE sip:250@172.26.218.10 SIP/2.0
Method: INVITE
Request-URI: sip:250@172.26.218.10
Request-URI User Part: 250
Request-URI Host Part: 172.26.218.10
[Resent Packet: False]
Message Header
Via: SIP/2.0/UDP 172.26.223.29:5060;branch=z9hG4bK5b5c8a2f
Transport: UDP
Sent-by Address: 172.26.223.29
Sent-by port: 5060
Branch: z9hG4bK5b5c8a2f
Max-Forwards: 70
From: "Test_1" <sip:2999@172.26.223.29>;tag=as1fc8b544
SIP Display info: "Test_1"
SIP from address: sip:2999@172.26.223.29
SIP from address User Part: 2999
SIP from address Host Part: 172.26.223.29
SIP from tag: as1fc8b544
To: <sip:250@172.26.218.10>
SIP to address: sip:250@172.26.218.10
SIP to address User Part: 250
SIP to address Host Part: 172.26.218.10
Contact: <sip:2999@172.26.223.29:5060>
Contact URI: sip:2999@172.26.223.29:5060
Contact URI User Part: 2999
Contact URI Host Part: 172.26.223.29
Contact URI Host Port: 5060
Call-ID: 1dd6f9133c98d44a6b5be75127921e0b@172.26.223.29:5060
[Generated Call-ID: 1dd6f9133c98d44a6b5be75127921e0b@172.26.223.29:5060]
CSeq: 102 INVITE
Sequence Number: 102
Method: INVITE
User-Agent: FPBX-15.0.16.81(16.13.0)
Date: Fri, 30 Apr 2021 08:48:56 GMT
Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, SUBSCRIBE, NOTIFY, INFO, PUBLISH, MESSAGE
Supported: replaces, timer
Remote-Party-ID: "Test_1" <sip:2999@172.26.223.29>;party=calling;privacy=off;screen=no
[Expert Info (Note/Undecoded): Unrecognised SIP header (remote-party-id)]
[Unrecognised SIP header (remote-party-id)]
[Severity level: Note]
[Group: Undecoded]
Content-Type: application/sdp
Content-Length: 277
Message Body
Session Description Protocol
Session Description Protocol Version (v): 0
Owner/Creator, Session Id (o): root 2047040453 2047040453 IN IP4 172.26.223.29
Owner Username: root
Session ID: 2047040453
Session Version: 2047040453
Owner Network Type: IN
Owner Address Type: IP4
Owner Address: 172.26.223.29
Session Name (s): Asterisk PBX 16.13.0
Connection Information (c): IN IP4 172.26.223.29
Connection Network Type: IN
Connection Address Type: IP4
Connection Address: 172.26.223.29
Time Description, active time (t): 0 0
Session Start Time: 0
Session Stop Time: 0
Media Description, name and address (m): audio 12702 RTP/AVP 18 101
Media Type: audio
Media Port: 12702
Media Protocol: RTP/AVP
Media Format: ITU-T G.729
Media Format: DynamicRTP-Type-101
Media Attribute (a): rtpmap:18 G729/8000
Media Attribute Fieldname: rtpmap
Media Format: 18
MIME Type: G729
Sample Rate: 8000
Media Attribute (a): fmtp:18 annexb=no
Media Attribute Fieldname: fmtp
Media Format: 18 [G729]
Media format specific parameters: annexb=no
Media Attribute (a): rtpmap:101 telephone-event/8000
Media Attribute Fieldname: rtpmap
Media Format: 101
MIME Type: telephone-event
Sample Rate: 8000
Media Attribute (a): fmtp:101 0-16
Media Attribute Fieldname: fmtp
Media Format: 101 [telephone-event]
Media format specific parameters: 0-16
Media Attribute (a): ptime:20
Media Attribute Fieldname: ptime
Media Attribute Value: 20
Media Attribute (a): maxptime:230
Media Attribute Fieldname: maxptime
Media Attribute Value: 230
Media Attribute (a): sendrecv
[Generated Call-ID: 1dd6f9133c98d44a6b5be75127921e0b@172.26.223.29:5060]

ded · Сообщение **ded** » 30 апр 2021, 13:09

Andy писал(а):когда звоню. с Freepbx 1 на LG, то на LG идёт только номер. при этом судя по логам сама LG не воспринимает ФИО:

Версии: LG не поддерживает Caller ID name, только Caller ID number, ввиду массового использования аналоговых телефонов, где отображались только цифры (а не буквы). Этот инвайт под спойлером снят где, на LG? Тогда на неё Caller ID name пришёл = Test_1

Andy писал(а):Нужно в ней смотреть?

Видимо да.

Andy писал(а):И второй вопрос, когда на LG снимают трубку.
У меня на FREEPBX 1 высвечивается
CID: и мой номер 2999
Можно CID убрать, только номер оставить?

Remote-Party-ID: "Test_1" <sip:2999@172.26.223.29>
send rpid = no

Andy · Сообщение **Andy** » 08 июн 2021, 16:22

ded писал(а):Remote-Party-ID: "Test_1" <sip:2999@172.26.223.29>
send rpid = no

Ded, добрый день,
не давно только смог вернуться к данному вопросу. Победить отображения ФИО на ДП получилось.
Но вот CID со стороны FreePBX 1 по прежнему отображается, после установки соединения.
send rpid = no
В исходящем транке, не помогает.
Не подскажите, что ещё можно посмотреть?

Вопрос по Caller ID

Вопрос по Caller ID

Re: Вопрос по АОНу

Re: Вопрос по АОНу

Re: Вопрос по АОНу

Re: Вопрос по АОНу

Re: Вопрос по АОНу

Re: Вопрос по АОНу

Re: Вопрос по АОНу

Re: Вопрос по АОНу

Re: Вопрос по АОНу
